FENCELINE MONITORING
The RAM2000 remote air monitor is the leading choice for fenceline monitoring of potentially harmful gas vapors. Our patented algorithms allow for hundreds of chemicals at many different concentrations to be quantified at the parts-per-billion (ppb) level, compared to alarms, and subsequently reported for regulatory compliance.
INDUSTRIAL GAS FTIR ANALYZERS
RAM2000 is the most adaptable multiple gas spectrometer on the market. Manufactured with a wide variety of options and custom fabrication for many specific applications, our RAM2000 industrial gas analyzers can be fitted with industry-leading ICL gas cells to meet the most challenging industrial gas measurements.
AWARDS & CERTIFICATIONS
*Logos & images from CSA, TRP, ETV, NELAC, SAVER are licensed trademarks of those entities and do not imply any endorsement, approval, certification, guarantee, or warranty of the company products, technologies, or services.
The RAM2000 OP-FTIR is the only Open-Path FTIR spectrometer fenceline air monitor accredited with USEPA’s Environmental Technology Verification (ETV) program. Contact KASSAY for our USEPA ETV Report and Certificate
ANALYZERS BASED ON RAM2000 TECHNOLOGY
RAM2000 specialized FTIR hardware and patented analytical software incorporated in all KASSAY spectrometers allow gases to be measured more accurately.
Challenges Solved by RAM2000 Technology
SPECTRAL NOISE
RAM2000 circuits employ military technology. The ADC circuit is specially designed to highly filter and digitize signal in a linear mode. The pre-amplifier circuit delivers a signal that is amplified in a way to minimize the detector noise. Power supplies and cables are better shielded and grounded.
ANALYTICAL ALGORITHMS
RAM2000 Software (RMMSoft) employs patented algorithms to lock the interferogram ZPD and micro-shift to know water peaks. An adaptive background filtering (ABF) algorithms aggressively handle concentration changes in atmospheric chemicals.
THERMAL STABILITY
RAM2000 optical benches are sold with optional temperature stabilization to keep internal alignment consistent and eliminate voltage drift. VCSEL lasers are further temperature stabilized.
KASSAY is a world-wide supplier of specialized open path FTIR spectrometers and accessories used for gas detection, air monitoring, and remote sensing of chemical plumes. KASSAY’s spectrometers are based on RAM2000-Technology which allows target chemicals to be quantified at the lowest detection limits within complex measurement environments. Open path RAM2000 based spectrometers are used to remotely measure the concentration of chemicals in gas (vapor) phase in real time. The RAM2000 is the only open path FTIR spectrometer with USEPA’s Environmental Technology Verification (ETV) Program. Applications for RAM2000 spectrometers are open path fence line monitoring, leak detection, ambient air testing, green house gas monitoring, military (agent) threat monitoring. Multiple gas RAM2000 monitors such as the FS, EX, AA, and MS are highly specialized FTIR spectrometer coupled with multipass gas cells. The multi-gas spectrometers are use to sample gas streams such as process, stacks, vents, ducts, exhausts, tanks, and other sources of vapor plumes. KASSAY celebrates 20 years of dedicated service to world-wide companies, armed services, governmental authorities and research institutions. RAM2000 systems are available for sale, lease, or turn key services.

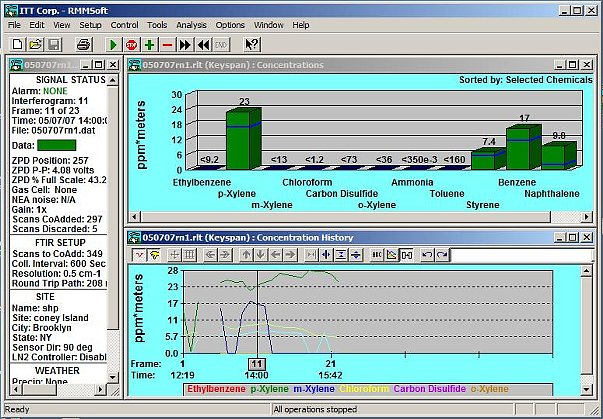

Continuous Monitoring Software
RAM2000 systems are controlled by RMMSoftTM continuous monitoring software. The software includes patented alogorithms to handle measurement challenges inherent in open path FTIR data. The mature and robust software is designed to control hardware devices through seperate servers, while continually collecting analyzing and presenting chemical concentrations results in real time.
Proven Design & Reliability

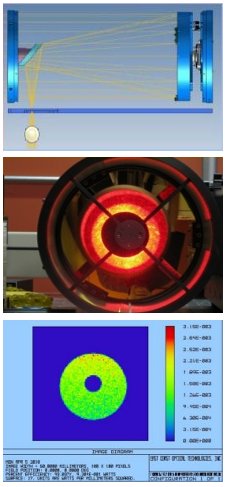

RAM2000 systems manufactured in the 1990’s are still in use today. Hardware and software are continually updated to take advantage of the latest technology. New components are created with state of the art design and modeling software to improve performance and determine efficiency. The RAM2000-OP Newtonian optic design which allows monitoring distances to be extended to 500 meters with a standard size retro reflector.
